Coil Closing Wheels for Zero Till Farming

Achieve outstanding furrows with RYAN NT Coil Closing Wheels on your double disc planter.

Coil Closing Wheels for Zero Till Farming

Achieve outstanding furrows with RYAN NT Coil Closing Wheels on your double disc planter.

Not too tight… Just right

Not too tight… Just right

Maximising seed-to-soil contact is a crucial factor you need to achieve.

Soil tilthed perfectly over furrows

Soil tilthed perfectly over furrows

Very few wheels on the market can do this, but RYAN NT’s can.

Better and more even germination

Better and more even germination

The greatest advantage of our range, meaning more money in your pocket at year end.


Your crops will ‘jump' out of the ground due to better seed placement and germination, leading to higher yields and more profit.

Keen to know more? Get in touch with us!

Complete the form below and we’ll call you within 24 hours.

  • This site is protected by reCAPTCHA and the Google Privacy Policy & Terms apply.

  • Hidden

Coil Closing Wheels, a proven aftermarket part to improve productivity

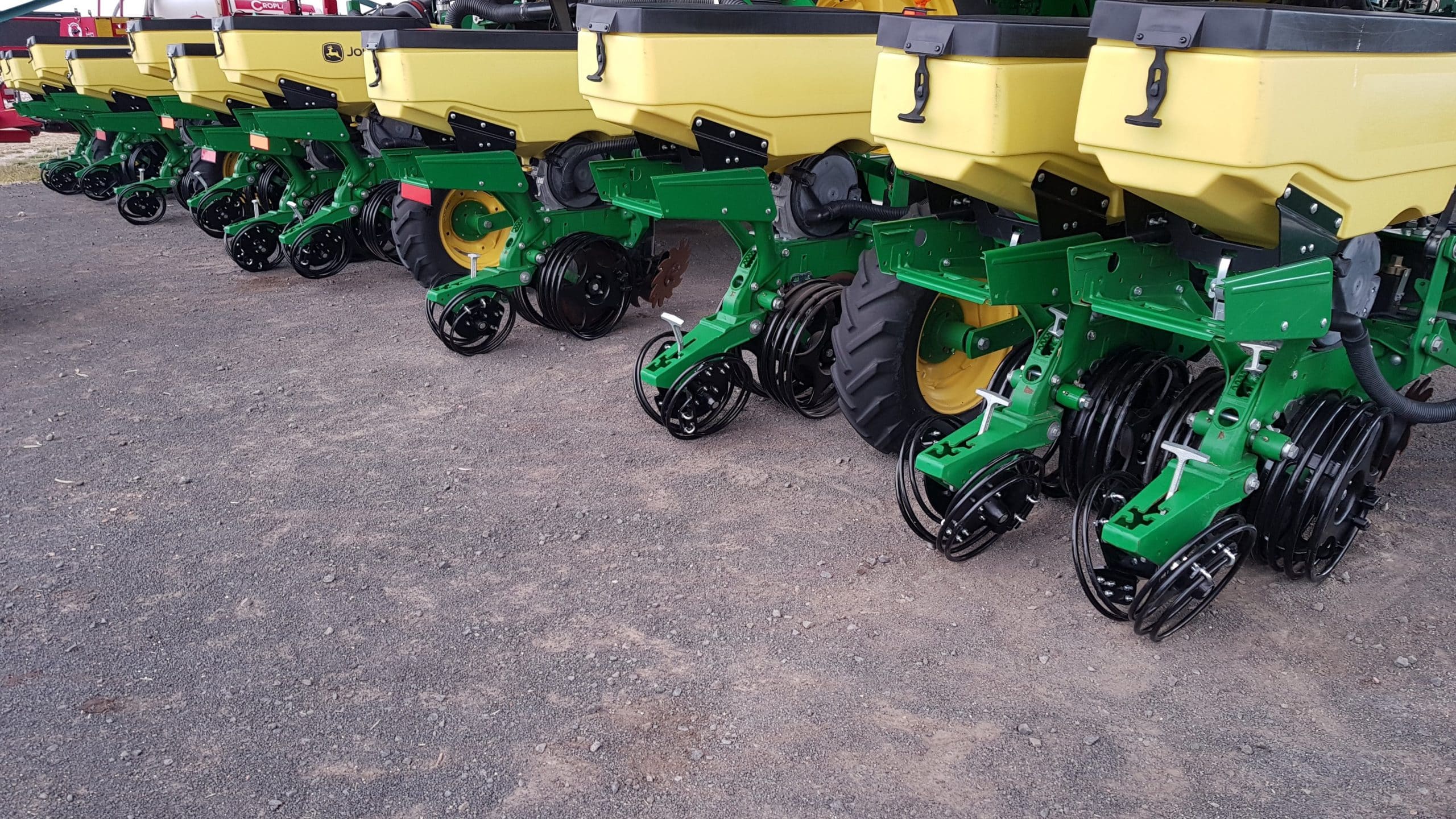

The goal has to be to get the absolute best outcome in terms of time & money from your precision planter… and you will using the revolutionary RYAN NT Coil Closing Wheels. They have shown fantastic results for most well-known brands including John Deere MaxEmerge and Kinze Precision Planters.

The Coil Closing Wheel was created from the continuous focus on evolving our coil press wheel range for seed drills and precision planters.

There are several reasons we can make this promise…

1. The wheels self-clean and close the furrows firmly, eliminating air pockets, enhancing seed-to-soil contact.

2. The wheels are made with spring steel meaning you won’t need to replace splitting or deteriorating rubber wheels.

3. The coil wheel is designed to make it easy to replace worn cast or rubber closing wheels while still using existing equipment and parts.

4. The closing wheels have shown excellent results on double disc opener planters in different soils, anywhere from heavy clays to heavy basalt country.

With a superb design you get many benefits from a coil closing wheel system

The key here is to consistently close the seed slot; if you can do this you get two critical productivity issues right – uniform emergence and maximised yields. That’s a promise.

3 reasons we can make this promise:

1. Conventional rubber, spiked or cast closing wheels too often result in poor germination due to reduced seed-to-soil contact or trench cracking…

👉 Not so with coil closing wheels – the auger action of the coil compacts soil tight, screwing the slot closed for a much better press.

👉 The coil shifts an excellent tilth across the soil surface allowing furrows to retain moisture and avoid cracking.

2. Conventional closing wheels on double disc row units usually require chains to drag soil tilth across the top of the furrow…

👉 Chains tend to pull stubble out and drag it through the furrow pulling seed or drying it out.

👉 By using coil closing wheels, the coil will drag the soil over the furrow and won't pull out the crop residue, meaning you no longer need chains.


3. Different conditions may require you to have a variety of closing wheels on hand…

👉 The Ryan coil wheels allow you to close the furrow in all soil types and conditions.

Break down sidewall compaction

Wet soils are easily compacted, a big problem during planting…and so is late planting! But no longer with the RYAN NT system. Here’s why…

1. Your patience can wear thin waiting for soils to dry; and worse if another rain is forecast in the near future! The yield penalty for late planting means it’s a balancing act, sometimes forcing you to take a punt and plant in less-than-ideal soil moisture conditions.

2. The next problem is sidewall compaction; planter disc openers may create sidewall smearing when pushing the wet soil outward to make the furrow, even more so if you have too much down pressure.

👉 RYAN NT Coil Closing Wheels are highly effective in breaking down sidewall compaction in such conditions. Much like the spikes on a spiked closing wheel, the coils cut into the side wall and break it down. In addition to that benefit, the coils will then auger the fractured soil over the furrow, leaving the perfect tilth on top for optimum growing conditions.

More outstanding results can be achieved when fitting your existing disc opener planter with our RYAN NT Coil Gauge Wheel. The combination can help create the ideal seed environment, leading to even emergence and higher yields. The action of the gauge wheel screws away dry soil, leaving optimum conditions for the closing wheel to screw moist soil against the seed.

2 Compression Spring Coils

Natural flex of the spring coil allows the wheel to self-clean.


Keeps the dry soil away from the seed trench.


No more plugging or cracking.


Better germination.

Spring SteelOvercomes replacing rubber tyres.
Fixed axle optionEasily retrofit to planters.
Adjustable axle option

Can change the angle or aggression depending on the seeder and soil type.

Easily retrofit for single disc airseeders.

Ideal for gassing.

Adapter suited for most single disc airseedersChange over your worn closing wheels with ease.
Waterpump 5023 BearingReduced downtime for maintenance.

Wheel OD:12” (300mm)
Coil Thickness:0.5” (12mm) spring wire
Coil Material:Spring Metal
Plate Material:Pressed Metal
Plate Thickness:6mm
Adapter Axle bolt:16mm
Bearing:Waterpump 5203
Models for:
  • John Deere,
  • Kinze,
  • AGCO White,
  • Serafin,
  • Great Plains,
  • Norseman,
  • Excel and
  • Boss.

RYAN NT Coil Wheels vs rubber gauge and spiked closing wheels in muddy conditions…

What our farmers have to say

“When we first tried them there was a huge difference. We only had two units with the wheels on, and the germination of those two wheels compared to the other five in our soil was tremendously better…”

– Tim Leifels of Moree (NSW)

Commonly asked questions from our farmers

Single disc seeder and double-disc precision planter row units use the closing wheels. Tine seeders use the press wheels.
