Ryan Tyne for No Till Farming
Achieve better germination when direct drilling with RYAN NT Tyne Seeder Bar Tines
Ryan Tyne for No Till Farming
Achieve better germination when direct drilling with RYAN NT Tyne Seeder Bar Tines.
High performance & versatile
A multi-purpose mount, adjustable height positions, self-cleaning & wide pivot point
No more breakout problems
The name of the game is better breakout, leading to better yields.
Upgrade your existing seeder
It’s easy to upgrade and saves having to buy expensive new equipment
OUR GUARANTEE:
Your crops will ‘jump' out of the ground due to better seed placement and germination, leading to higher yields and more profit.
Keen to know more? Get in touch with us!
Complete the form below and we’ll call you within 24 hours.

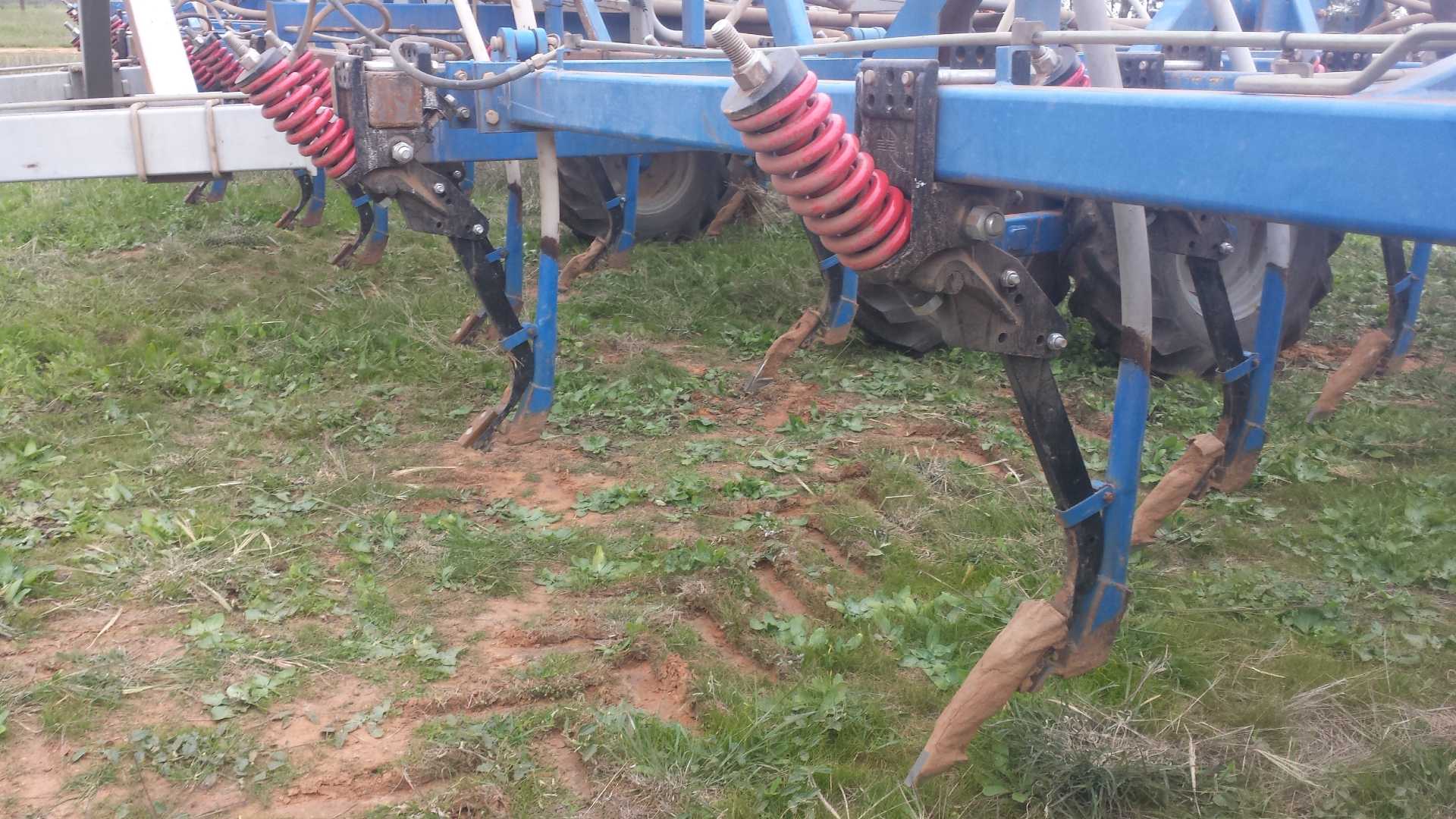

Seeder Bar Tynes for the roughest and toughest planting conditions
You can rely with RYAN NT Tynes on your air seeder bar because, after helping farmers plant crops for more than four decades we know, and can promise, they WILL do the job, no matter how harsh the planting conditions you face.
Having proudly invested so much into the industry, RYAN NT (formerly RFM NT) is now Australia’s leading No-Till seeder bar tine manufacturer and supplier. Not only here, but around the world, farmers are recognizing the RYAN NT Tyne as a ‘must-have’ air seeder bar tine for direct drill farming.
You benefit from these special RYAN Seeder Bar Tyne design features
Whatever your soil type or planting conditions, the RYAN NT agricultural seeder bar tyne will do the job brilliantly because of our industry-leading design features…
1. A HEAVY-DUTY hardened cast steel frame on our cultivator tine assembly for strength & versatility.
2. A GREASEABLE PIVOT point system means less time needed on maintenance.
3. A SPRING RELEASE system that is way more efficient than a spring curly tyne.
4. A MULTI-PURPOSE mount that fits most common RHS and diamond frames.
5. A TAPERED BOLT & nut means you avoid wear-and-tear in the mount housing.
6. The PIVOTING HEADSTOCK has a rubber dampener & holes so you can adjust the height.
👉 The tyne trip assembly easily fits the RYAN NT self-cleaning tyne shank or RYAN NT Double Disc System. This also makes it easier to replace worn tynes.
Further improve the efficiency and productivity of your no-till farm machinery operation:
1. Better seed to soil contact is guaranteed using the RYAN Tynes in conjunction with our contour-following RYAN NT Coil Press Wheel system
2. Fitting the contour-following coil press wheel with our seed boot onto your seeder bar, which is independent from the tyne, allows for greater depth control when either single or double chuting.
3. The combination of the self-cleaning tyne and coil press wheel consistently delivers accurate seed placement in dry or sticky conditions.
| FEATURES | BENEFITS |
| Large Pivot Point 175mmx25mm | Longevity. |
| Adjustable Height | For adjustment, if required. |
| Adjustable Angles | To suit different points if required. |
| Edge On Shank 50mmx20mm | Designed to self clean. |
| Built-in rubber dampener | Avoid damage on recoil. |
| Breakout | Adjustable, from one spring at 400lb/180kg to two springs at 600lb/270kg. |
| Underframe Clearance: | 730mm |
| Bolt hole foot Angle: | 45 degrees |
| Double bolt hole foot Angle: | 47 degrees |
| Single chute or double chute. |
| Ryan NT Double Disc assembly can be fitted to the tine trip. |
| Available in self-clean design or straight. |
| Available in a double or single bolt. |
| Suited for: | Will fit most standard cultivator, hoe-drill, scarifier or chisel plow frames |
What our farmers have to say
Commonly asked questions from our farmers
In two words, passion and innovation!
The Ryan family has a long history as cultivator tine manufacturers and suppliers.
For some 50 years, the Ryan Tyne assembly has been through a process of continuous improvement to keep pace with the evolving agricultural industry. In those early days, founder, Austin Ryan OAM, developed it to suit the first green and yellow model known as the “Ryan Scaravator”.
Austin actually began working with tyne systems in the 1950s when he saw a need for a wide-line spring release tyne cultivator to suit local planting conditions and the need for a self-cleaning shank.
In those days he made a toolbar with various shaped shanks to find the one that cleaned best. The best design finally chosen for the Ryan Tyne was the well-recognised edge-on-curve at the bottom, with a 35-degree lean forward. This particular shape allowed trash to be cleared from the bottom and drop off if it gets around the bend.
This system differed from the all-other spring tyne models in use at the time also incorporating Mitchell straight tynes with single bolt hole 45-degree foot with a 7/16 bolt hole.
The unique design allows for easy replacement of worn tines, can fit most standard frames and has a large breakout range. And we have now added another benefit – you can quickly change from a tyne shank to a double disc assembly.
The secret to any tyne mechanism is not only its trash handling ability but its longevity. This is where the Ryan Tyne wins hands-down having always been recognised for its wide and strong pivot. Today it is undoubtedly the most sort after tyne for no-till direct drill farming.
The horsepower varies based on the points used. Many factors influence this requirement, such as soil type, machine configuration, application and what you're trying to achieve.
Yes, we do. Our mounted assembly fits all common frame sizes.
Yes, you can. The legs come in a two bolt hole and a single bolt hole.
